10 - 12 mt
the new generation 3

While developing GENERATION 3, PALFINGER EPSILON combined at the very highest level its customers’ expectations with many years of experience in crane engineering, together with the most innovative technologies.

The result: The longest reach in its class, fully integrated centralized greasing options, the new COMFORT DRIVE control system, the new PALFINGER SMART CONTROL assistance system, and new outrigger options offering an even wider range of support.

With the aim of building even stronger cranes without adding weight for exceptional performance, the steel structure has been completely redeveloped and extensively optimized on the GENERATION 3. The new GENERATION 3 comprises a wide range of products with lifting capacities between 10 and 18 metric tonnes on both the Z and L type cranes.

Are you smart enought? More information about our intelligent assistance system SMART CONTROL.

highlights
of the new generation 3

The longest reach in its class - up to 10.9 meters
COMFORT DRIVE - the new control system including a new 360° light concept
Centralized greasing options: automatic or manual
SMART CONTROL - for the electric cab option
New outtrigger options - support width up to 5.4 meters

Control methods

Available areas for

Classic Drive

The lightweight standard top sear from PALFINGER EPSILON - light, robust, proven and reliable.

Classic Drive | GENERATION 3
COMFORT DRIVE

The new compact COMFORT DRIVE: Maximum ergonomics while operating the crane and minimum fatigue during longer tasks.

Comfort Drive | GENERATION 3
COMFORT CAB

The hydraulic pilot control system COMFORT CAB: Protection in all weather conditions and perfect allround comfort.

Comfort CAB | GENERATION 3
TEC CAB

Maximum comfort and protection: The TEC CAB guarantees sensitive, smooth and ergonomic crane control due to electric pilot control system.

TEC CAB | GENERATION 3
COMFORT DRIVE lateral topseat

The new COMFORT DRIVE lateral topseat focuses on the operator and addresses their specific needs and requirements.

COMFORT DRIVE lateral topseat | GENERATION 3
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Classic Drive

The lightweight standard top sear from PALFINGER EPSILON - light, robust, proven and reliable.

Classic Drive | GENERATION 3
COMFORT DRIVE

The new compact COMFORT DRIVE: Maximum ergonomics while operating the crane and minimum fatigue during longer tasks.

Comfort Drive | GENERATION 3
COMFORT CAB

The hydraulic pilot control system COMFORT CAB: Protection in all weather conditions and perfect allround comfort.

Comfort CAB | GENERATION 3
TEC CAB

Maximum comfort and protection: The TEC CAB guarantees sensitive, smooth and ergonomic crane control due to electric pilot control system.

TEC CAB | GENERATION 3
COMFORT DRIVE lateral topseat

The new COMFORT DRIVE lateral topseat focuses on the operator and addresses their specific needs and requirements.

COMFORT DRIVE lateral topseat | GENERATION 3
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Technical details

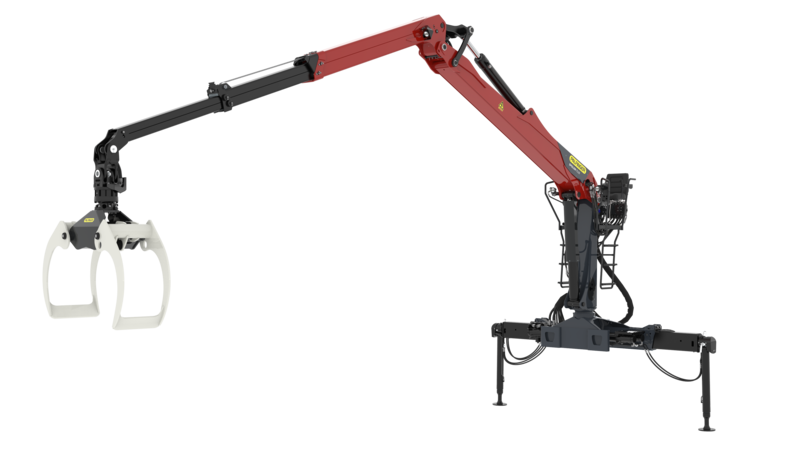

L-Crane

	TL10		TL12
Telescopic boom length [dm]	80	97	80	97
Number of extensions	1	2	1	2
Net load moment [kNm]	97	93	115	111
Net slewing torque [kNm]	24	24	28	28
Slewing angle [°]	425	425	425	425
Max. reach [m]	8,0	9,7	8,0	8,0
Operating pressure [bar]	220	220	250	250
Max. pump capacity. 1K [l/min]	1x80	1x80	1x80	1x80
Max. pump capacity. 2K [l/min]	2x70	2x70	2x70	2x70
Max. pump capacity. 2K-LS [l/min]	1x80	1x150	1x150	1x150

Dead weight without joint/rotator

	TL10		TL12
Telescopic boom length [dm]	80	97	80	97
Classic Drive	2040	2100	2130	2190
Comfort Drive	2160	2220	2250	2310
Comfort CAB	2640	2700	2730	2790
TEC CAB	2630	2690	2720	2780

Z-Crane

	TZ10		TZ12
Telescopic boom length [dm]	86	98	86	98	109
Number of extensions	1	2	1	2	2
Net load moment [kNm]	93	92	109	105	104
Net slewing torque [kNm]	24	24	28	28	28
Slewing angle [°]	425°	425°	425°	425°	425°
Max. reach [m]	8,6	9,8	8,6	9,8	10,9
Operating pressure [bar]	230	230	260	260	260
Max. pump capacity. 1K [l/min]	1x80	1x80	1x80	1x80	1x80
Max. pump capacity. 2K [l/min]	2x70	2x70	2x70	2x70	2x70
Max. pump capacity. 2K-LS [l/min]	1x150	1x150	1x150	1x150	1x150

Dead weight without joint/rotator

	TZ10		TZ12
Telescopic boom length [dm]	86	98	86	98	109
Classic Drive	2230	2270	2270	2310	2370
Comfort Drive	2350	2390	2390	2430	2490
Comfort CAB	2830	2870	2870	2910	2970
TEC CAB	2820	2860	2860	2900	2960
