Forwardercrane

C-Series
EPSOLUTION

EPSILON’s tractor crane models stand out by short parking length, low net weight and compact height. There are plenty of possibilities for individual specification due to the modular construction system.

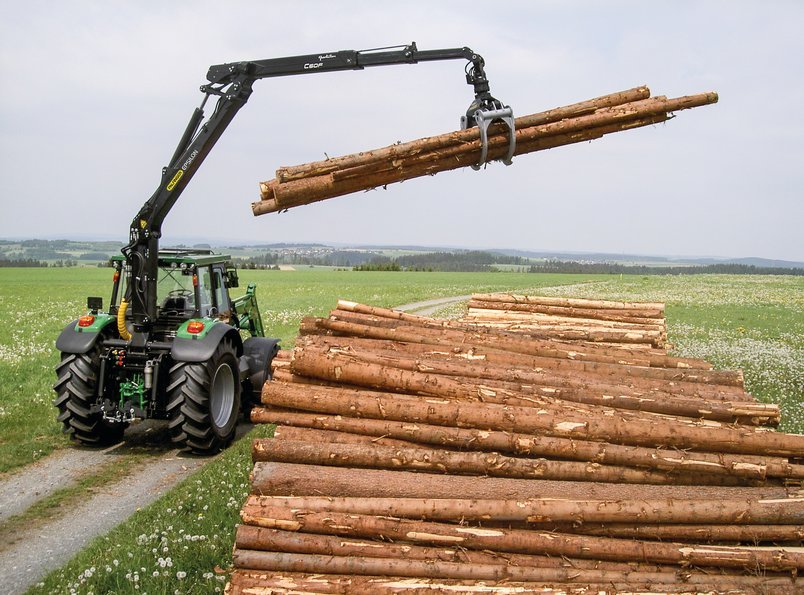

The C-Series is the compact class of EPSILON cranes in the tractor model range and covers lifting capacities of 4,5 to 6 tonne metres.

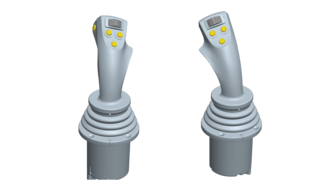

Control methods

Available areas for

External Control

Especially for OFF ROAD applications EPSILON offers an optional hydraulic set-up to control the crane from the cabin of a seperate vehicle.

External Control
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Technical details

Forwardercrane

	C45F		C50F		C60F
Telescopic boom length [dm]	67	84	69	86	69	86
Number of extensions	1	2	1	2	1	2
Net load moment [kNm]	53	51	56	54	63	61
Net slewing torque [kNm]	14	14	18	18	20	20
Slewing angle [°]	340	340	425	425	425	425
Max. reach [m]	6,7	8,4	6,9	8,6	6,9	8,6
Operating pressure [bar]	170	170	180	180	200	200
Max. pump capacity. 1K [l/min]	-	-	-	-	-	-
Max. pump capacity. 2K [l/min]	-	-	-	-	-	-
Max. pump capacity. 1K-LS [l/min]	100	100	120	120	120	120
