M-SERIES
EPSOLUTION

EPSILON and SOLUTION together make EPSOLUTION

The market leader in forestry and recycling cranes considers it its duty to take requests and feedback from customers and implement them in its designs, thereby creating well-founded solutions that provide customers with products tailor-made for their applications.

The M-Series is the medium-duty class of EPSILON cranes in this model range and covers lifting capacities of 10 to 13 tonne metres.

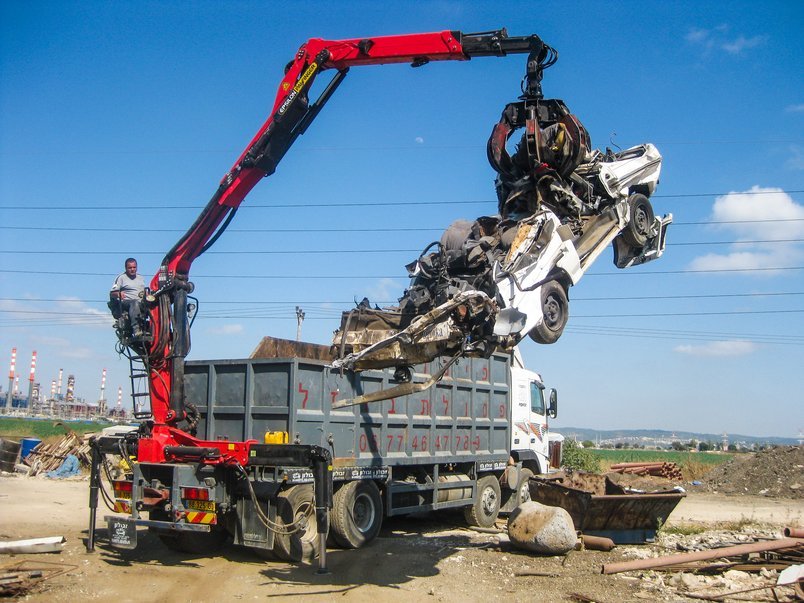

EPSILON-M100Z | © PALFINGER-EPSILON

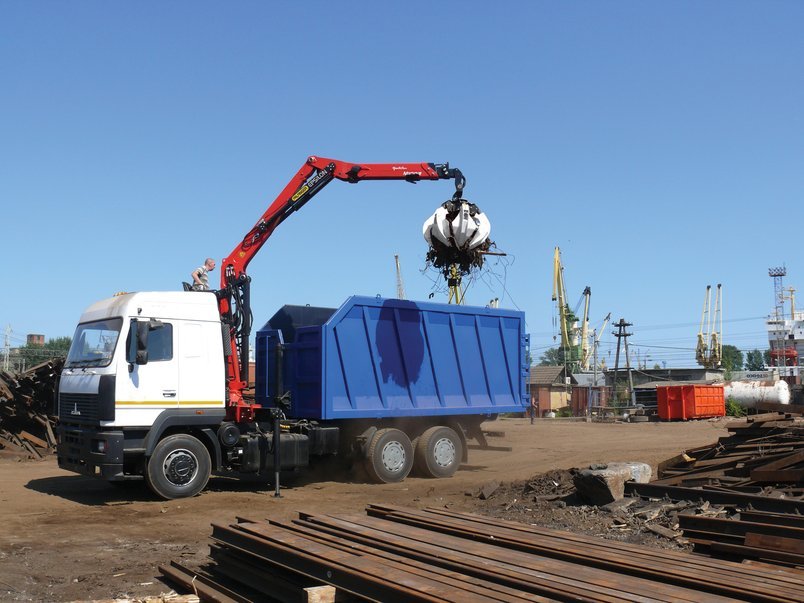

EPSILON-M100L | © PALFINGER-EPSILON

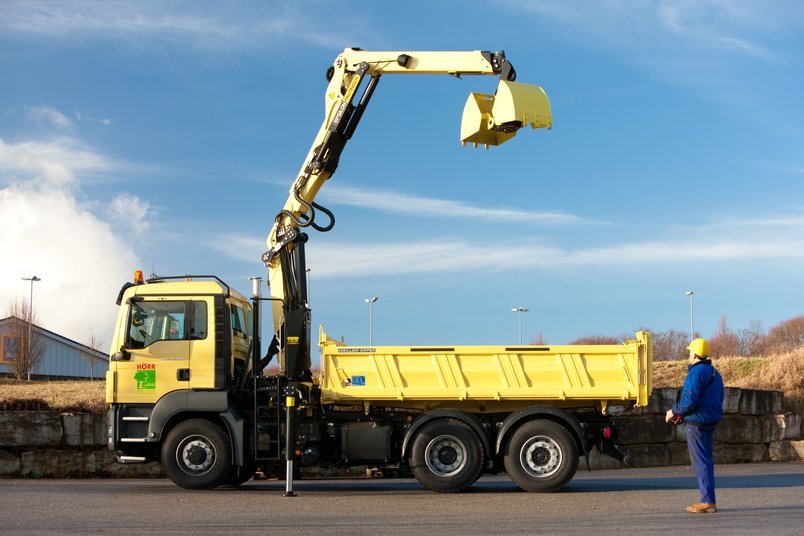

EPSILON-MZ-TR | © PALFINGER-EPSILON

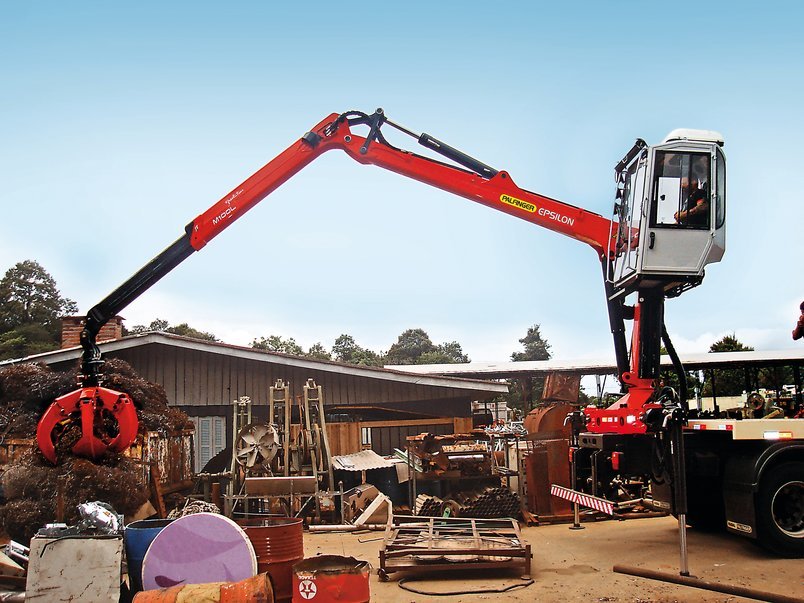

EPSILON-MLTR | © PALFINGER-EPSILON

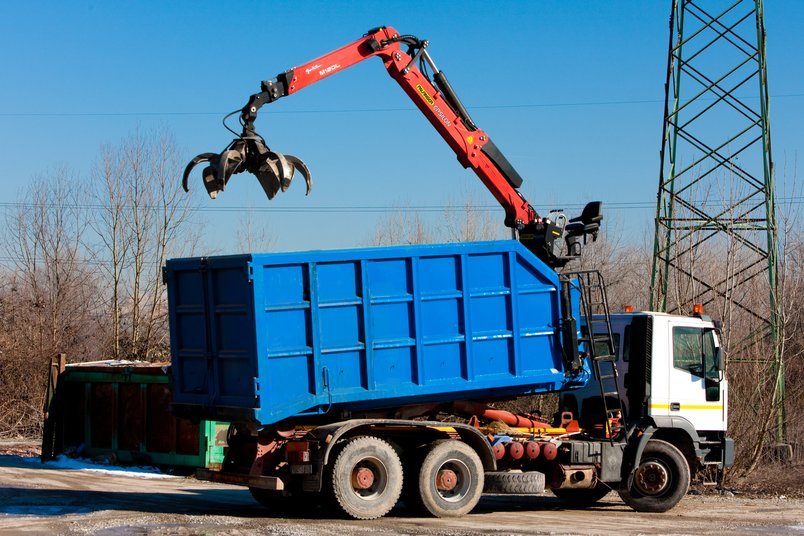

EPSILON-MZ-TR | © PALFINGER-EPSILON

CONTROL METHODS

Available areas for

Technical details

M100Z M100ZD M110Z M120Z M130Z
Telescopic boom length [dm] 77 78 79 82 95 96 96 77 78 79 82 95 96 77 78 79 82 95 96 77 78 79 82 95 96
Number of extensions 2 1 1 2 2 2 2 2 1 1 2 2 2 2 1 1 2 2 2 2 1 1 2 2 2
Net load moment [kNm] 94 94 93 92 90 90 79 101 101 99 99 97 97 108 108 109 107 105 105 123 123 123 121 119 119
Net slewing torque [kNm] 24 24 24 24 24 24 24 27 27 27 27 27 27 28 28 28 28 28 28 28 28 28 28 28 28
Slewing angle [°] 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425
Max. reach [m] 7,7 7,8 7,9 8,2 9,5 9,6 9,6 7,7 7,8 7,9 8,2 9,5 9,6 7,7 7,8 7,9 8,2 9,5 9,6 7,7 7,8 7,9 8,2 9,5 9,6
Operating pressure [bar] 230 230 230 230 230 230 210 245 245 245 245 245 245 260 260 260 260 260 260 290 290 290 290 290 290
Max. pump capacity. 1K [l/min] 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80
Max. pump capacity. 2K [l/min] 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70
Max. pump capacity. 2K-LS [l/min] 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130

Dead weight without joint/rotator

M100Z M100ZD M110Z M120Z M130Z
Telescopic boom length [dm] 77 78 79 82 95 96 96 77 78 79 82 95 96 77 78 79 82 95 96 77 78 79 82 95 96
table.nextHochstand 2140 2090 2100 2150 2190 2200 2200 2140 2090 2100 2150 2190 2200 2140 2090 2100 2150 2190 2200 2140 2090 2100 2150 2190 2200
Incl. standard top seat 2140 2090 2100 2150 2190 2200 2200 2140 2090 2100 2150 2190 2200 2140 2090 2100 2150 2190 2200 2140 2090 2100 2150 2190 2200
Incl. electric cabin (CAE) 2480 2430 2440 2490 2530 2540 - 2480 2430 2440 2490 2530 2540 - - - - - - - - - - - -
Incl. mechanical cabin (CAM) 2490 2440 2450 2500 2540 2550 - 2490 2440 2450 2500 2540 2550 - - - - - - - - - - - -
Incl. XL electric cabin (CAEXL) - - - - - - 2610 - - - - - - - - - - - - - - - - - -
Incl. remote control (RCE) 2140 2090 2100 2150 2190 2200 2200 2140 2090 2100 2150 2190 2200 2140 2090 2100 2150 2190 2200 2140 2090 2100 2150 2190 2200
M100L M100LD M110L M120L M130L
Telescopic boom length [dm] 75 80V 80 83 97 80 97 75 80V 80 83 97 75 80V 80 83 97 75 80V 80 83 97
Number of extensions 2 2 1 2 2 1 2 2 2 1 2 2 2 2 1 2 2 2 2 1 2 2
Net load moment [kNm] 100 97 97 95 92 89 85 111 108 108 106 103 119 117 116 114 112 132 129 129 127 124
Net slewing torque [kNm] 24 24 24 24 24 24 24 27 27 27 27 27 28 28 28 28 28 28 28 28 28 28
Slewing angle [°] 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425 425
Max. reach [m] 7,5 8 8 8,3 9,7 8 9,7 7,5 8 8 8,3 9,7 7,5 8 8 8,3 9,7 7,5 8 8 8,3 9,7
Operating pressure [bar] 215 215 215 215 215 200 200 235 235 235 235 235 250 250 250 250 250 280 280 280 280 280
Max. pump capacity. 1K [l/min] 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80 1x80
Max. pump capacity. 2K [l/min] 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70 2x70
Max. pump capacity. 2K-LS [l/min] 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130 1x130

Dead weight without joint/rotator

M100L M100LD M110L M120L M130L
Telescopic boom length [dm] 75 80V 80 83 97 80 97 75 80V 80 83 97 75 80V 80 83 97 75 80V 80 83 97
table.nextHochstand 1990 2080 1990 2040 2110 1990 2110 1990 2080 1990 2040 2110 1990 2080 1990 2040 2110 1990 2080 1990 2040 2110
Incl. standard top seat 1990 2080 1990 2040 2110 1990 2110 1990 2080 1990 2040 2110 1990 2080 1990 2040 2110 1990 2080 1990 2040 2110
Incl. electric cabin (CAE) 2330 2330 2330 2380 2450 - - 2330 2330 2330 2380 2450 - - - - - - - - - -
Incl. mechanical cabin (CAM) 2340 2340 2340 2390 2460 - - 2340 2340 2340 2390 2460 - - - - - - - - - -
Incl. XL electric cabin (CAEXL) - - - - - 2400 2520 - - - - - - - - - - - - - - -
Incl. remote control (RCE) 1990 2080 1990 2040 2110 1990 2110 1990 2080 1990 2040 2110 1990 2080 1990 2040 2110 1990 2080 1990 2040 2110
M100Z M110Z M120Z
Telescopic boom length [dm] 79TR 95TR 79TR 95TR 79TR 95TR
Number of extensions 1 2 1 2 1 2
Net load moment [kNm] 91 88 98 94 104 101
Net slewing torque [kNm] 24 24 27 27 28 28
Slewing angle [°] 425 425 425 425 425 425
Max. reach [m] 7,9 9,5 7,9 9,5 7,9 9,5
Operating pressure [bar] 260 260 275 275 290 290
Max. pump capacity. 1K [l/min] 1x80 1x80 1x80 1x80 1x80 1x80
Max. pump capacity. 2K [l/min] 2x70 2x70 2x70 2x70 2x70 2x70
Max. pump capacity. 2K-LS [l/min] 1x130 1x130 1x130 1x130 1x130 1x130

Dead weight without joint/rotator

M100Z M110Z M120Z
Telescopic boom length [dm] 79TR 95TR 79TR 95TR 79TR 95TR
table.nextHochstand 2360 2460 2360 2460 2360 2460
Incl. standard top seat 2360 2460 2360 2460 2360 2460
Incl. remote control (RCE) 2360 2460 2360 2460 2360 2460
M100L M110L M120L
Telescopic boom length [dm] 81TR 95TR 81TR 95TR 81TR 95TR
Number of extensions 2 2 2 2 2 2
Net load moment [kNm] 92 90 103 100 111 109
Net slewing torque [kNm] 24 24 27 27 28 28
Slewing angle [°] 425 425 425 425 425 425
Max. reach [m] 8,1 9,5 8,1 9,5 8,1 9,5
Operating pressure [bar] 215 215 235 235 250 250
Max. pump capacity. 1K [l/min] 1x80 1x80 1x80 1x80 1x80 1x80
Max. pump capacity. 2K [l/min] 2x70 2x70 2x70 2x70 2x70 2x70
Max. pump capacity. 2K-LS [l/min] 1x130 1x130 1x130 1x130 1x130 1x130

Dead weight without joint/rotator

M100L M110L M120L
Telescopic boom length [dm] 81TR 95TR 81TR 95TR 81TR 95TR
table.nextHochstand 2330 2400 2330 2400 2330 2400
Incl. standard top seat 2330 2400 2330 2400 2330 2400
Incl. remote control (RCE) 2330 2400 2330 2400 2330 2400
M100Z M110Z M120Z
Telescopic boom length [dm] 84TI 84TI 84TI
Number of extensions 2 2 2
Net load moment [kNm] 93 93 107
Net slewing torque [kNm] 24 27 28
Slewing angle [°] 425 425 425
Max. reach [m] 8,4 8,4 8,4
Operating pressure [bar] 230 245 260
Max. pump capacity. 1K [l/min] 1x80 1x80 1x80
Max. pump capacity. 2K [l/min] 2x70 2x70 2x70
Max. pump capacity. 2K-LS [l/min] 1x130 1x130 1x130

Dead weight without joint/rotator

M100Z M110Z M120Z
Telescopic boom length [dm] 84TI 84TI 84TI
table.nextHochstand 2210 2210 2210
Incl. standard top seat 2210 2210 2210
Incl. remote control (RCE) 2210 2210 2210
