S-SERIES
EPSOLUTION

EPSILON and SOLUTION together make EPSOLUTION

The market leader in forestry and recycling cranes considers it its duty to take requests and feedback from customers and implement them in its designs, thereby creating well-founded solutions that provide customers with products tailor-made for their applications.

The S-Series is the heavy-duty class of EPSILON cranes in this model range and covers lifting capacities of 22 to 30 tonne metres.

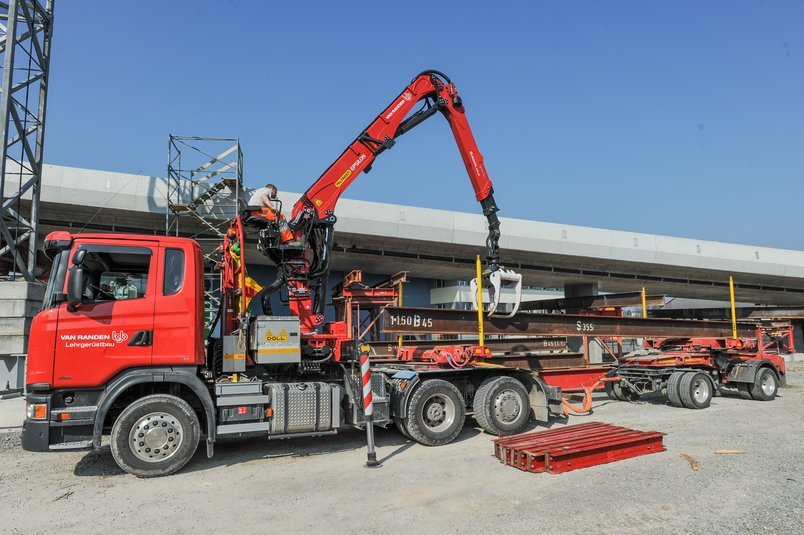

EPSILON-S300L98 | © PALFINGER-EPSILON

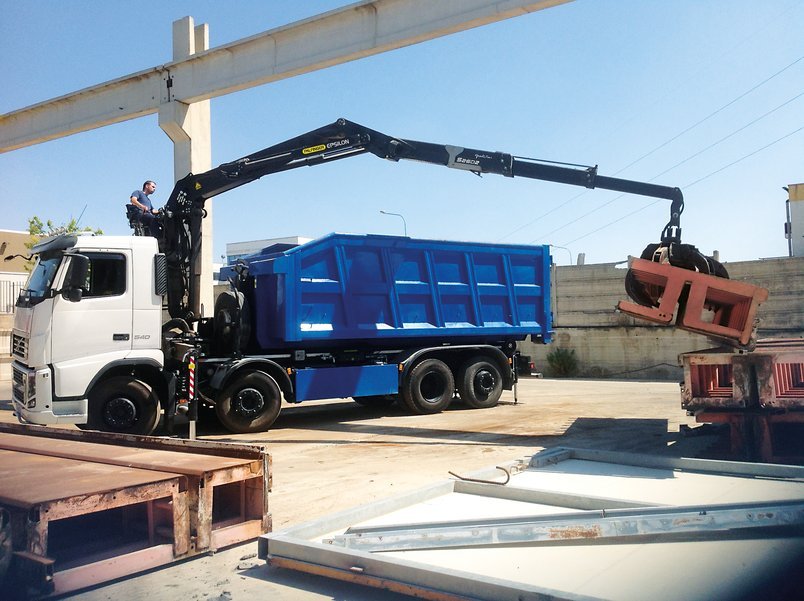

EPSILON-S260Z | © PALFINGER-EPSILON

CONTROL METHODS

Available areas for

Technical details

S210LD S260L S270L
Telescopic boom length [dm] 82 97 102 128 130 82 87 97 128 130 83 88 98 98
Number of extensions 1 2 2 - 1 1 1 2 - 1 1 1 2 2
Net load moment [kNm] 182 176 171 155 151 236 232 229 208 204 248 244 242 242
Net slewing torque [kNm] 35 35 35 35 35 39 39 39 39 39 39 39 39 39
Slewing angle [°] 385 385 385 385 385 385 385 385 385 385 385 385 385 385
Max. reach [m] 8,2 9,7 10,2 12,8 13 8,2 8,7 9,7 12,8 13 8,3 8,8 9,8 9,8
Operating pressure [bar] 225 225 225 225 225 280 280 280 280 280 260 260 260 260
Max. pump capacity. 1K [l/min] - - - - - - - - - - - - - -
Max. pump capacity. 2K [l/min] 2x90 2x90 2x90 2x90 2x90 2x90 2x90 2x90 2x90 2x90 2x90 2x90 2x90 2x90
Max. pump capacity. 2K-LS [l/min] - - - - - - - - - - - - - -

Dead weight without joint/rotator

S210LD S260L S270L
Telescopic boom length [dm] 82 97 102 128 130 82 87 97 128 130 83 88 98 98
Incl. standard top seat 2360 2520 2570 2650 2740 2360 2410 2520 2650 2740 2500 2540 2660 2660
S210ZD S260Z
Telescopic boom length [dm] 96 79 96
Number of extensions 2 1 2
Net load moment [kNm] - 218 212
Net slewing torque [kNm] 33 36 36
Slewing angle [°] 385 385 385
Max. reach [m] 9,6 7,9 9,6
Operating pressure [bar] - 260 260
Max. pump capacity. 1K [l/min] - - -
Max. pump capacity. 2K [l/min] 2x90 2x90 2x90
Max. pump capacity. 2K-LS [l/min] - - -

Dead weight without joint/rotator

S210ZD S260Z
Telescopic boom length [dm] 96 79 96
Incl. standard top seat 3100 2960 3100
