EPSCAB CABIN

Top efficiency in all weather conditions.
Excellent overview thanks to hydraulically raised crane cabin.

PALFINGER-EPSILON-CAM-seite | © PALFINGER-EPSILON
PALFINGER-EPSILON-CAE-vorne | © PALFINGER-EPSILON
PALFINGER-EPSILON-CAEXL_vorne | © PALFINGER-EPSILON

EPSCAB VERSIONS

EPSCAB CABIN
MANUAL

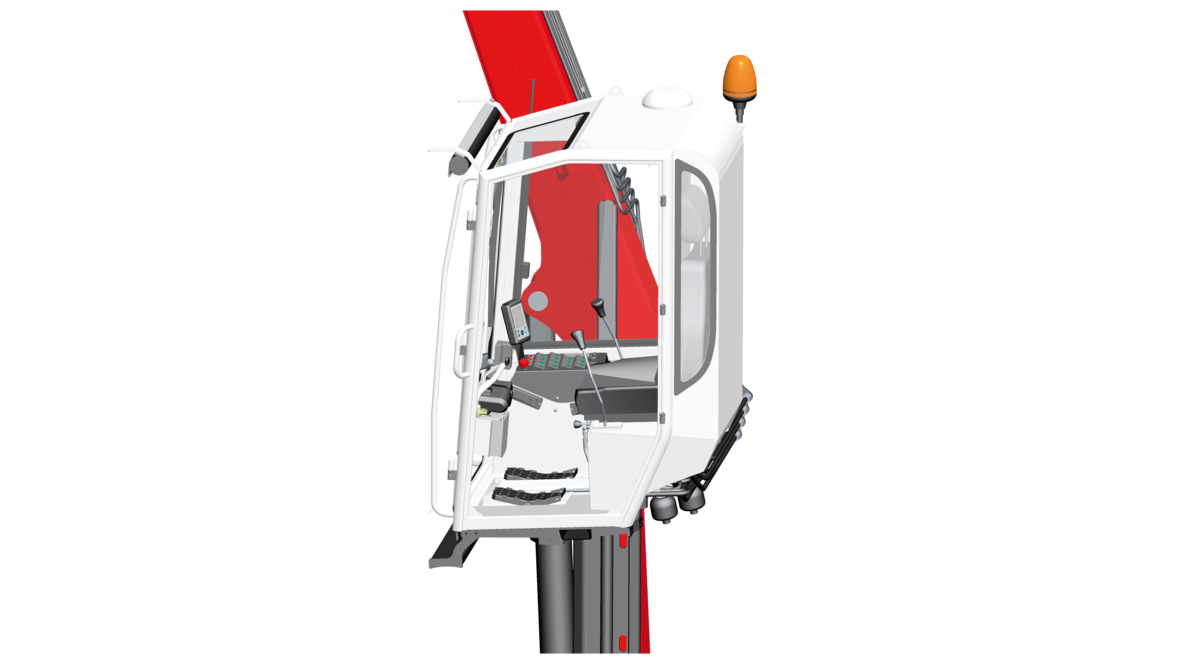

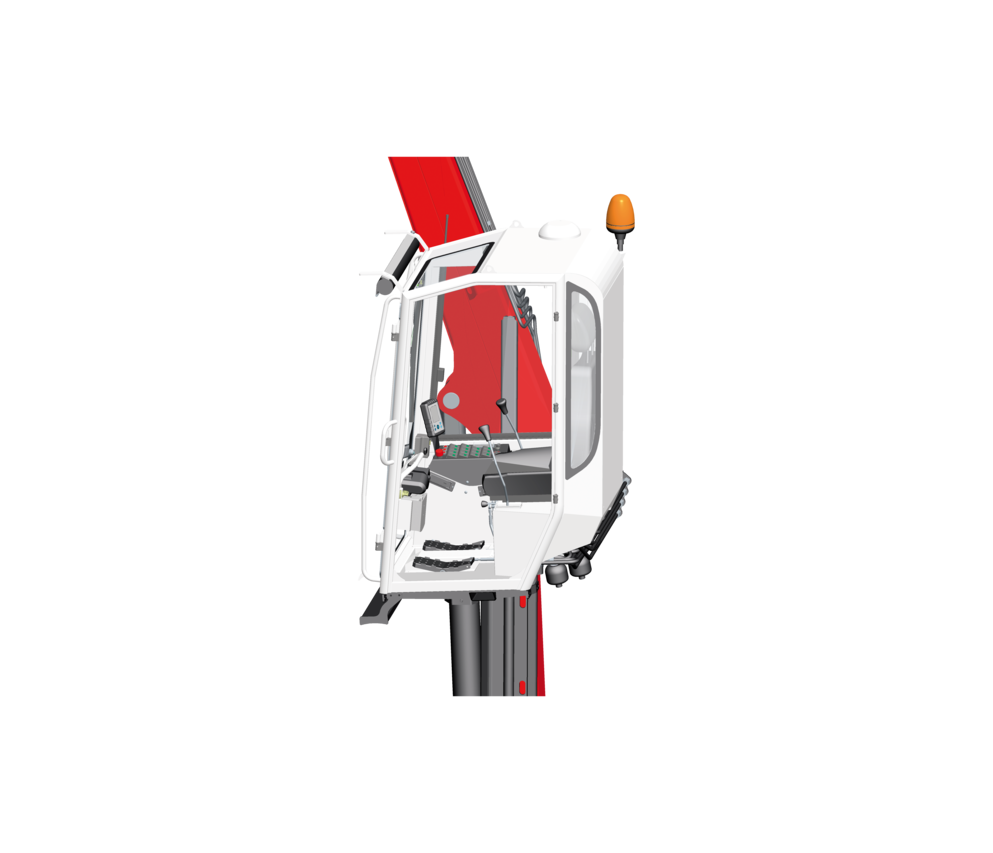

CAM

EPSCAB with manual control

  • 7 sections (6 crane, 1 cabin lift) Parker F130CF control valve operated manually by ballbearing, maintenance- and clearance free levers, doublecircuit
  • Radio with RDS / CD and LineIn for MP3 player
  • Cabin lift operated proportionally manual
  • Front and side door (frontwindow made of 8 mm Lexan safety glass with protection cover)
  • Seat with contact switch against unintended crane operation
  • Seat heating
  • Water heating with thermostat and three-stage fan
  • Cabin with powder primer, powder coated in RAL 9003
  • Windscreen wiper with interval switch and windscreen washer

EPSCAB CABIN
ELECTRICAL

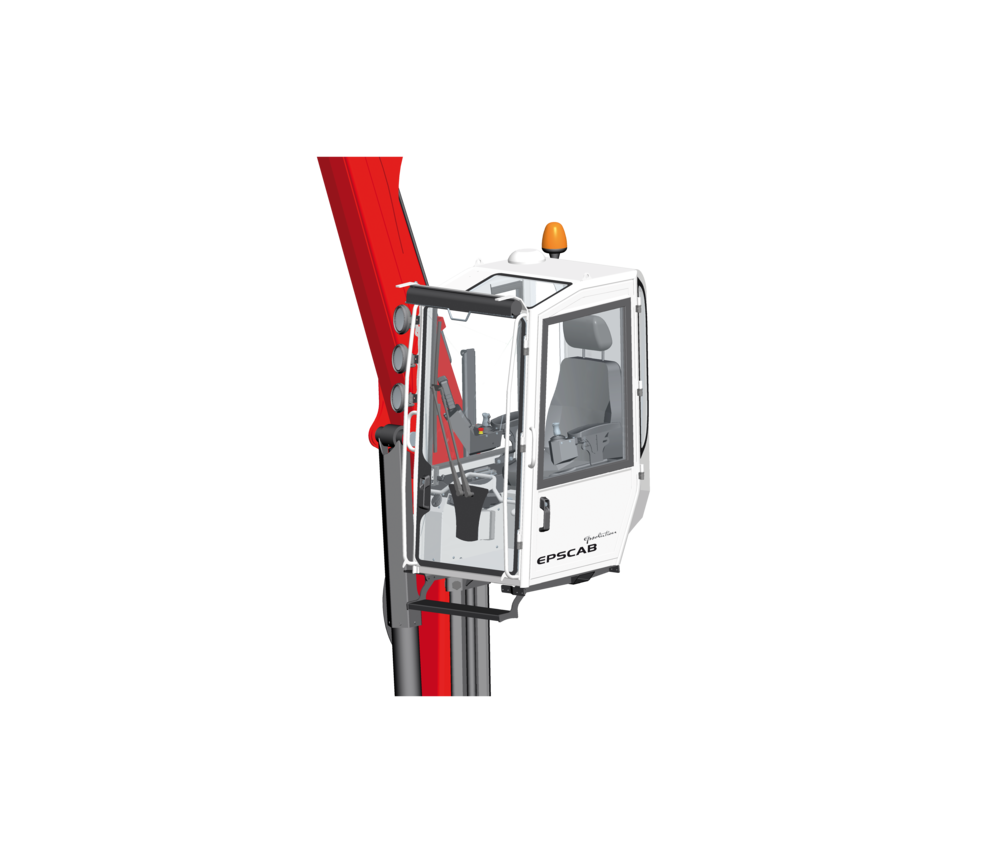

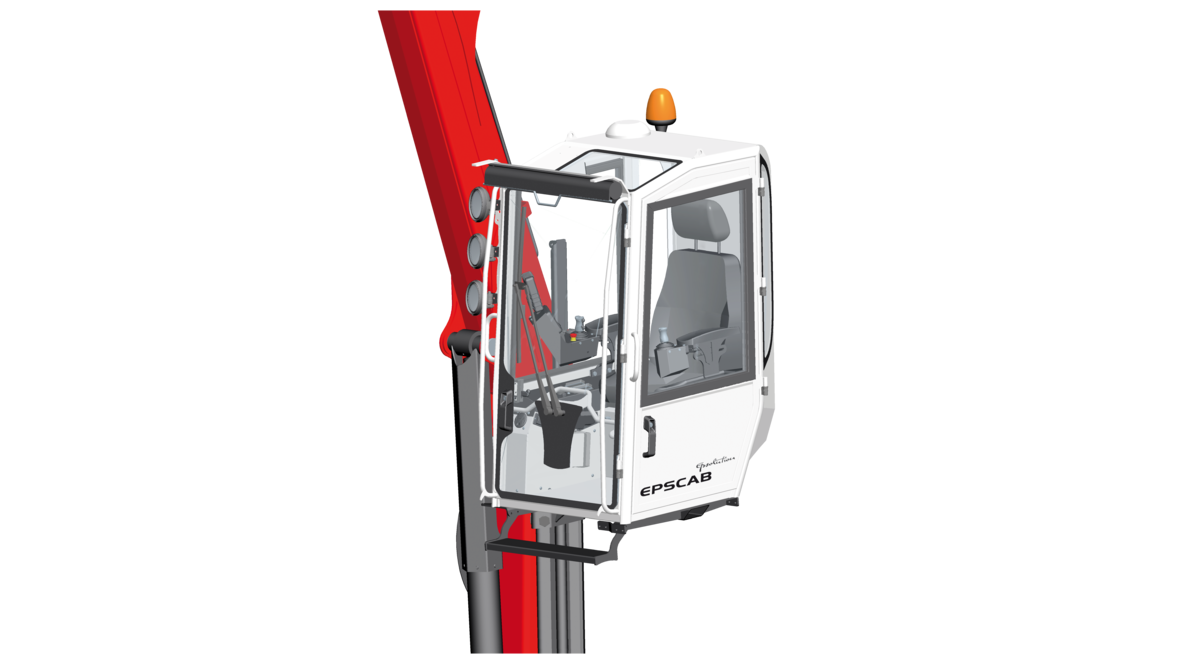

CAE

EPSCAB with electro hydraulic controls

  • Electro hydraulic controls with Parker L90LS and IQAN, all 11 functions operated proportionally
  • Radio with RDS / CD and Line In for MP3 player
  • 1K single circuit prepared for variable displacement pump (constant pump not available!)
  • Front and side door (frontwindow made of 8mm Lexansafety glass with protectioncover)
  • Seat with contact switch against unintended crane operation
  • Seat heating
  • Water heating with thermostat and three stage fan
  • Cabin with powder primer, powder coated in RAL 9003
  • Damper units (Hultdins)
  • MD3 display offers individual setting options with Soft Touch control, display of service inspections
  • 1S free section on stabilizer valve

EPSCAB XL- CABIN
ELECTRICAL

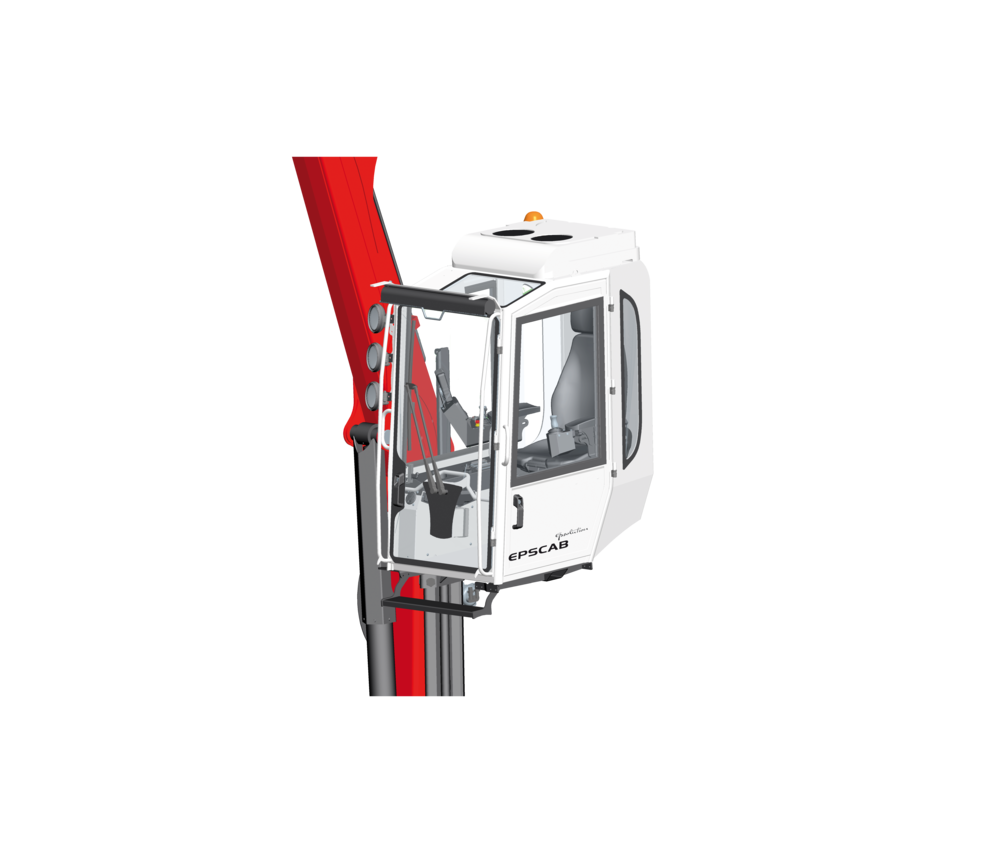

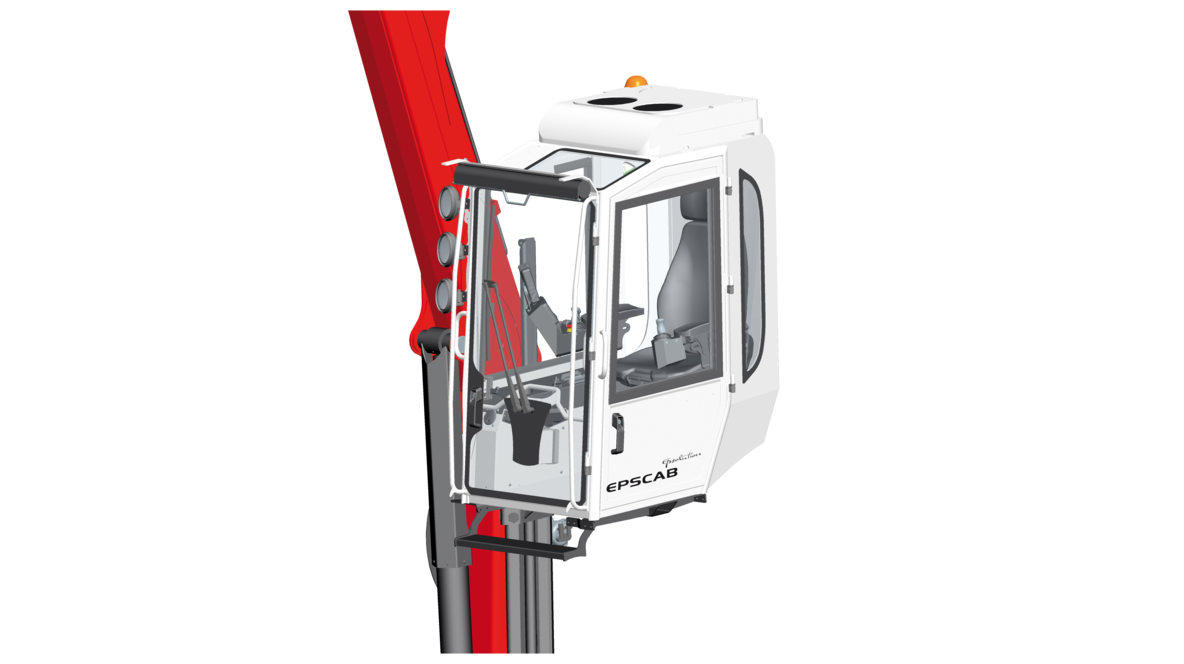

CAE XL

EPSCAB XL with electro hydraulic controls

All features of EPSCAB CAE plus:

  • 200mm longer cabin offers additional legroom
  • Optional: panorama door with inclined front window (spec. for chipper application)
  • Arm rest ergonomically adjustable in all directions
  • AC air conditioning mounted on roof
  • Grammer seat with air suspension
  • Cup holder, 12 volt connector

Standard features EPSCAB CAE:

  • Electro hydraulic controls with Parker L90LS and IQAN, all 11 functions operated proportionally
  • Radio with RDS / CD and Line In for MP3 player
  • 1K single circuit prepared for variable displacement pump (constant pump not available!)
  • Front and side door (frontwindow made of 8mm Lexansafety glass with protectioncover)
  • Seat with contact switch against unintended crane operation
  • Seat heating
  • Water heating with thermostat and three stage fan
  • Cabin with powder primer, powder coated in RAL 9003
  • 5 spot lights, indoor lighting
  • Damper units (Hultdins)
  • MD3 display offers individual setting options with Soft Touch control, display of service inspections
  • 1S free section on stabilizer valve
  • 12V connector (only for CAEXL)
