Skiddercrane

X-SERIES
EPSOLUTION

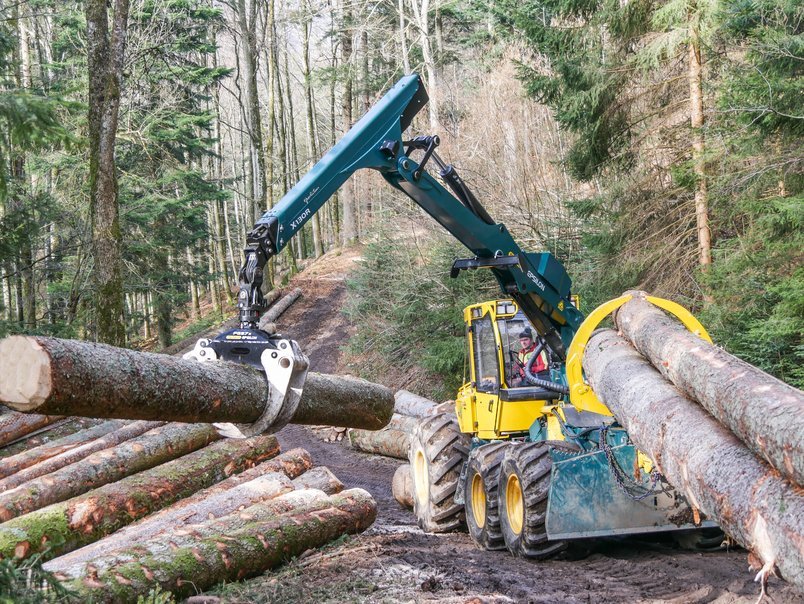

EPSILON long wood skidders stand out especially in this application area by their low and robust method of construction as well as their reliability. Many different boom types give the crane the perfect geometry on each machine, suitable for the individual requirements.

The X-Series is the extra heavy-duty class of EPSILON cranes in the skidder model range and covers lifting capacities of 13 to 15 tonne metres.

CONTROL METHODS

Available areas for

External Control

Especially for OFF ROAD applications EPSILON offers an optional hydraulic set-up to control the crane from the cabin of a seperate vehicle.

External Control
Find a dealer in your area

'Global Business – Global Structure' is the motto that demonstrates how important it is to EPSILON to offer customers local services wherever possible.

Country

Technical details

Skiddercrane

	X130R				X150R
Telescopic boom length [dm]	72	80	96	104	72	80	96	104
Number of extensions	2	2	2	2	2	2	2	2
Net load moment [kNm]	127	120	118	110	140	134	131	124
Net slewing torque [kNm]	47	47	47	47	52	52	52	52
Slewing angle [°]	380	380	380	380	380	380	380	380
Max. reach [m]	7,2	8	9,6	10,4	7,2	8	9,6	10,4
Operating pressure [bar]	220	220	220	220	240	240	240	240
Max. pump capacity. 1K [l/min]	1x110	1x110	1x110	1x110	1x110	1x110	1x110	1x110
Max. pump capacity. 2K [l/min]	-	-	-	-	-	-	-	-
Max. pump capacity. 2K-LS [l/min]	-	-	-	-	-	-	-	-
